Technical Data<\/h2>\n<\/div>\n

\n

\n

Model<\/div>\n

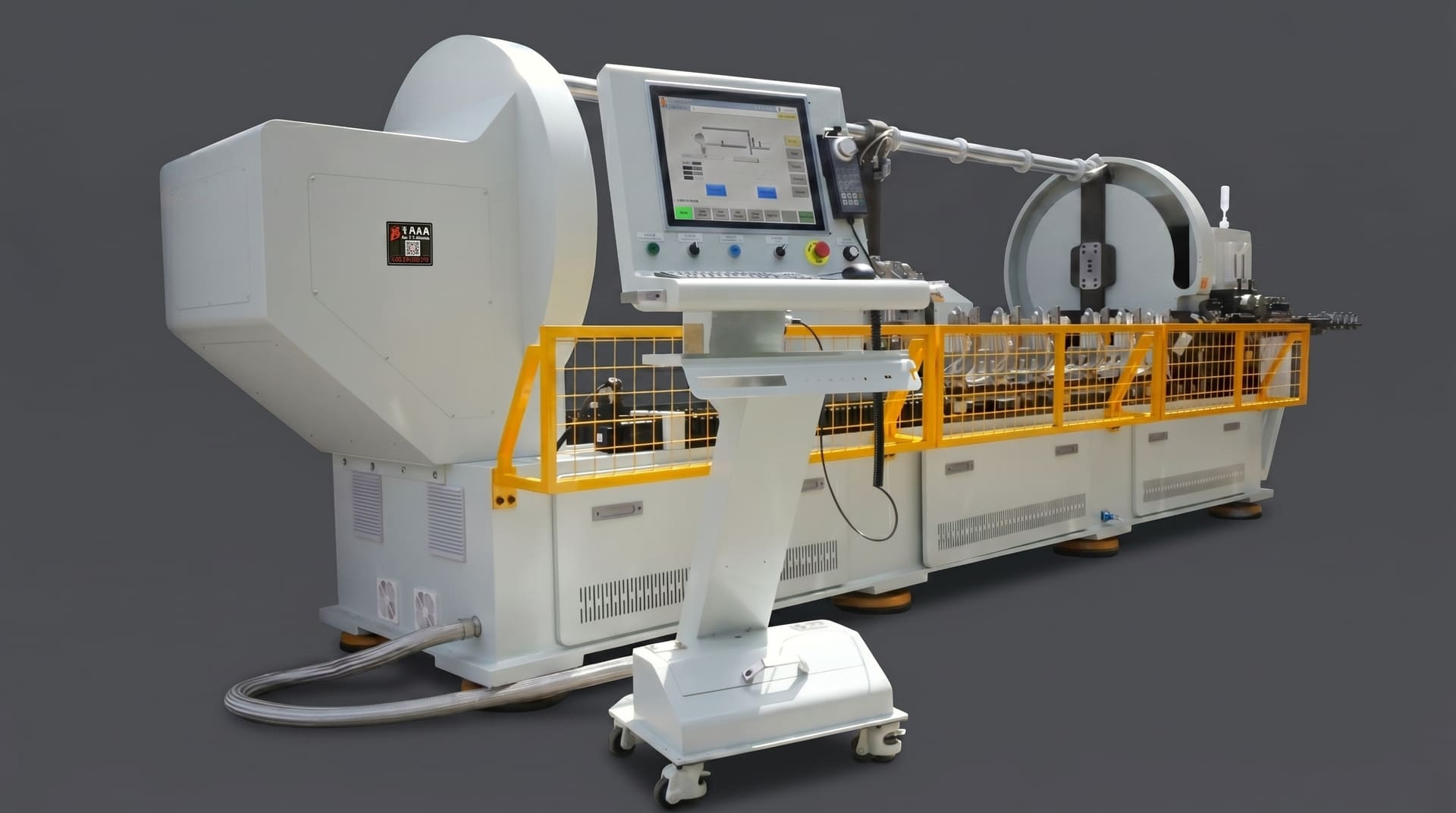

BL-2T-15600 Double-Head Machine<\/div>\n<\/div>\n

\n

Applicable Wire Dia.<\/div>\n

Hard Φ3.0-4.5mm \/ Soft Φ3.0-6.0mm<\/div>\n<\/div>\n

\n

Max Processing Length<\/div>\n

≤2000mm<\/div>\n<\/div>\n

\n

Min Center Distance (Single\/Double)<\/div>\n

80 \/ 120mm<\/div>\n<\/div>\n

\n

No. Of Control Axis<\/div>\n

15 Axis<\/div>\n<\/div>\n

\n

Total Power<\/div>\n

26.9KW<\/div>\n<\/div>\n

\n

Power of Wire Feeding Motor<\/div>\n

2.7KW<\/div>\n<\/div>\n

\n

Power of Wire Clamping Translation<\/div>\n

2.0KW<\/div>\n<\/div>\n

\n

Power of Rotating Small Arm<\/div>\n

1.3KW ×2<\/div>\n<\/div>\n

\n

Power of Rotating Large Arm<\/div>\n

2.7KW ×2 (with brake)<\/div>\n<\/div>\n

\n

Power of Left\/Right Turn<\/div>\n

3.0KW ×2<\/div>\n<\/div>\n

\n

Power of Left\/Right Lifting<\/div>\n

1.0KW ×2<\/div>\n<\/div>\n

\n

Power of Left\/Right Turn Inward<\/div>\n

1.3KW ×2<\/div>\n<\/div>\n

\n

Power of Left\/Right Turn Outward<\/div>\n

1.3KW ×2<\/div>\n<\/div>\n

\n

Power of Cutting Tool<\/div>\n

1.0KW<\/div>\n<\/div>\n

\n

Working Voltage<\/div>\n

Three-phase 380V (±20V)<\/div>\n<\/div>\n

\n

Weight<\/div>\n

5000KG<\/div>\n<\/div>\n

\n

Machine Size (L×W×H)<\/div>\n

6600 × 1600 × 2200mm<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n

\n

\n

\n

Automatic Feeder Info<\/h2>\n<\/div>\n

\n

\n

Maximum Load Weight<\/div>\n

1000KG<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>\n<\/div>","diy_video":{"link":"https:\/\/youtu.be\/yyUwlxztK4A","image":"https:\/\/v7-upload.digoodcms.com\/website_218\/2026-07-02\/6a46188fbddc1-image.png","title":"BL-2T-15600 Double-Head Machine","description":"Double end wire forming machine Rear seat frame bending machine 3D wire bending machine"},"diy_application":null,"diy_faq":null,"category_info":{"id":24,"guid":"3sNBfwvewnfQGGREAhvZ3","language":"en","name":"Double-Head Wire Bending Machine","label":"Double-Head Wire Bending Machine","value":24,"defer":false,"collapsed":false},"updated_at_label":"07\/14 17:56"}]">Mesin Pembengkokan Wayar Berkembar Kepala
